Type: Carbon Film Resistor
Series: CR
Resistance Range: 1Ω~10MΩ
Tolerance: ±2%, 5%
TCR/(ppm/ oC)： +350/-1000
Size: 1/8W, 1/4W, 1/4WS, 1/2W, 1/2WS, 1W, 1WS, 2W, 2WS, 3W, 3WS, 5WS
Description：This resistor is a ceramic bar tightly coated with a carbon film Industry’s lower cost and deliver from stock Application: all kinds of customer devices.
Introduction:
Featuring consistency and stably-controlled, these carbon film resistors with reasonable prices are widely and largely be used in the electronic, electrical and information industries.
This resistor is a ceramic bar tightly coated with a carbon film which is composed of carbon separately from organic compound through the treatment of high temperature vacuum.
After the carbon coated bar is connected with proper joint and engraved with grooves, its surface is finished with epoxy resin so that the bar is enclosed with a protective film.
Features:
Industry’s lower cost and deliver from stock.
Exceptional long term stability.
Exceeds carton comp MIL-R-11 performance
Standard tolerance: ±2%, ±5%

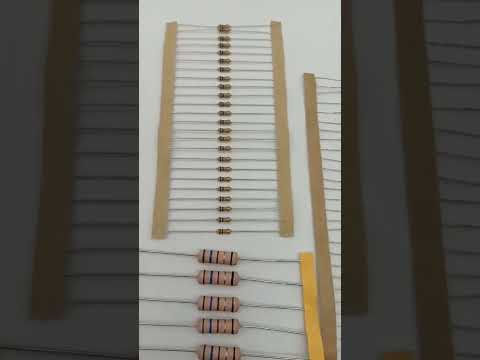

Variety of packing: Bulk , strip pack. 26mm and 52mm tape and reel, cut and formed or radial Pana.
Type: Metal Oxide Resistor
Series: MO
Resistance Range: 1Ω~180KΩ
Tolerance: ±1%, ±2%, ±5%
TCR/(ppm/ ℃)：±350ppm
Size: 1/8W, 1/4W, 1/4WS, 1/2W, 1/2WS, 1W, 1WS, 2W, 2WS, 3W, 3WS, 5W, 5WS, 7WS
Description：Complete flameproof construction. Metal Oxide also can replace many low power general purpose wire wound applications, saving both money and time with shorter delivery cycles.
Introduction：
These Metal Oxide Resistors offer excellent performance in applications where stability and uniformity of characteristics are desired.
They provide lower cost alternative to Carbon Composition Resistors and General Purpose Metal Films.
Metal Oxide resistors also can replace many low power general purpose wirewound applications.
Saving both time and money, with shorter delivery cycles.
Features:
High Power-to-Size ratio for significant space savings.
Excellent long-term stability
Complete flameproof construction
High surge/overload capability
Wide Resistance range: 1Ω~180KΩ
Standard tolerance:±1%, ±2%, ±5%
Type：Metal Film Precision Resistor
Series：MF
Resistance Range：10Ω~1MΩ
Tolerance：± 0.1%, ± 0.25%, ± 0.5%, ± 1%, ± 0.05%,± 0.01%,
TCR/(ppm/℃)：±5ppm,±10ppm,±15ppm,±25ppm,±50ppm,±100ppm,
Size： 1/8W, 1/4W, 1/4WS, 1/2W, 1/2WS, 1W, 1WS, 2W, 2WS, 3W, 3WS, 5W, 5WS.
Description：Mixed metals and passivative materials onto a fight grade ceramic substrate ±5ppm or ±10ppm Mainly used in the industries of precision instruments, electronic measurement.
Introduction：
The MF series Metal Film Resistors are manufactured using vacuum sputtering system to deposit multiple layers of mixed metals and passivative materials onto a carefully treated fight grade ceramic substrate, the resistors are coated with layers of light-blue lacquer.
±5ppm and ±10ppm mainly used in the industries of precision instruments, electonic measurements. For military or natinoal defenses and other electronic equipments
Features:
MIL-R-1059F
High precision and low temperature coefficient
Resistance Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%, ±0.05%,±0.01%,
T.C.R/℃: ±5ppm/℃,±10ppm/℃,±15ppm/℃,±25ppm/℃,±50ppm/℃,±100ppm/℃,
Type: Fusible Resistor
Series: FR
Resistance Range: 0.33Ω~1KΩ
Tolerance: ± 2%, 5%
TCR/(ppm/℃)： 100/350
Size: 1/4W, 1/2W, 1W, 2W, 3WS, 3W
Description： Ideal circuit opening controller, disconnecting units from overload rating specified. Flame retardant coating. Body coating is in gray, with 4 or 5 color bands or stamping
Fusible resistors can be customed designs. It is specially spiraled to provide the fusible function with flame retardant coating.
Applications are widely used in constant voltage designed, overload protection, applicable for battery charges, TV sets, cordless phones and PC/CPU coolers
